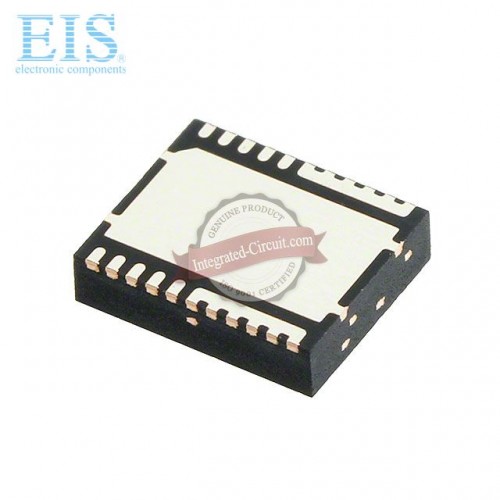

CSD95372BQ5MC
$0.00
(528)
CSD95372BQ5MC
CSD95372BQ5MC
$0.00
We can ship to most of the country in the World.
Of course at a very low shipping cost, because we have a very good relationship for the discount.
We can ship by:
1. DHL
2. FEDEX
3. UPS
4. TNT
5. Normal Post
6. Any other shipping way you can choose.
Please Contact us for any questions about shipping:
sales@power-management-ic.com
Prepayment for new customer
1. Bank Transfer (Wire Transfer)
2. Paypal (You can use your credit card to pay by Paypal)
3. Western Union / Money Gram
If you have any questions about payment terms, you can feel free to contact us.
| Mfg. Part Number | CSD95372BQ5MC | |
| Manufacturer | Texas Instruments | |
| Product Category | PMIC - Full, Half-Bridge Drivers | |
| Description | POWER STAGE DESIGN FOR DUAL COOL | |
| Datesheet Download | Download | |
| Internal Part Number | EIS-CSD95372BQ5MC | |
| Lead Free Status / RoHS Status | Contains lead / RoHS compliant by exemption | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Fab Site Addition 22/Nov/2014 Assembly/Test Site Revision C 09/Feb/2015 | |
| Manufacturer Product Page | CSD95372BQ5MC Specifications | |
| Standard Package | 2,500 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Series | NexFET™ | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Half Bridge | |
| Applications | Synchronous Buck Converters | |
| Interface | PWM | |
| Load Type | Inductive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | - | |
| Current - Output / Channel | 60A | |
| Current - Peak Output | 90A | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Voltage - Load | 4.5 V ~ 16 V | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Features | Bootstrap Circuit, Status Flag | |
| Fault Protection | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 12-PowerTFDFN | |
| Supplier Device Package | 12-VSON (5x6) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | CSD95372BQ5MC | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | CSD95372BQ5MC | |
| Related Links | CSD953, CSD95372BQ5MC Datasheet, Texas Instruments Distributor | |
