WELCOME TO THE WORLD OF POWER MANAGEMENT IC
STLD20CP1PQR
$0.00
(3000)
STLD20CP1PQR
STLD20CP1PQR
$0.00
We can ship to most of the country in the World.
Of course at a very low shipping cost, because we have a very good relationship for the discount.
We can ship by:
1. DHL
2. FEDEX
3. UPS
4. TNT
5. Normal Post
6. Any other shipping way you can choose.
Please Contact us for any questions about shipping:
sales@power-management-ic.com
Prepayment for new customer
1. Bank Transfer (Wire Transfer)
2. Paypal (You can use your credit card to pay by Paypal)
3. Western Union / Money Gram
If you have any questions about payment terms, you can feel free to contact us.
| Mfg. Part Number | STLD20CP1PQR | |
| Manufacturer | STMicroelectronics | |
| Product Category | PMIC - LED Drivers | |
| Description | IC LED Driver DC DC Regulator PWM, Single-Wire Dimming 300mA (Flash) Backlight, Camera Flash 16-QFN (3x3) | |
| Datesheet Download | Download | |
| Internal Part Number | EIS-STLD20CP1PQR | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Standard Package | 3,000 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Type | DC DC Regulator | |
| Topology | Step-Up (Boost), Switched Capacitor (Charge Pump) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 2 | |
| Voltage - Supply (Min) | 2.8V | |
| Voltage - Supply (Max) | 6V | |
| Voltage - Output | 17V | |
| Current - Output / Channel | 300mA (Flash) | |
| Frequency | 1.3MHz | |
| Dimming | PWM, Single-Wire | |
| Applications | Backlight, Camera Flash | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

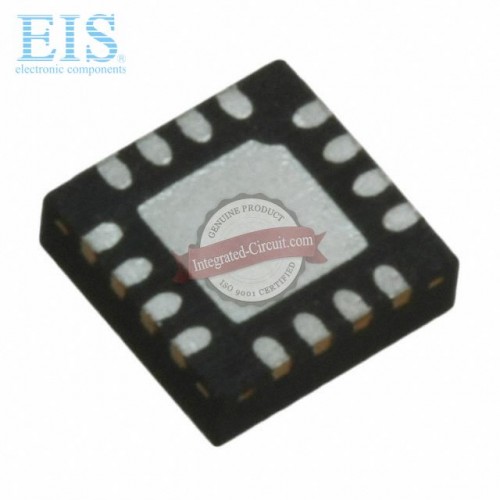

| Package / Case | 16-VFQFN Exposed Pad | |
| Supplier Device Package | 16-QFN (3x3) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | STLD20CP1PQR | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | STLD20CP1PQR | |
| Related Links | STLD20, STLD20CP1PQR Datasheet, STMicroelectronics Distributor | |
